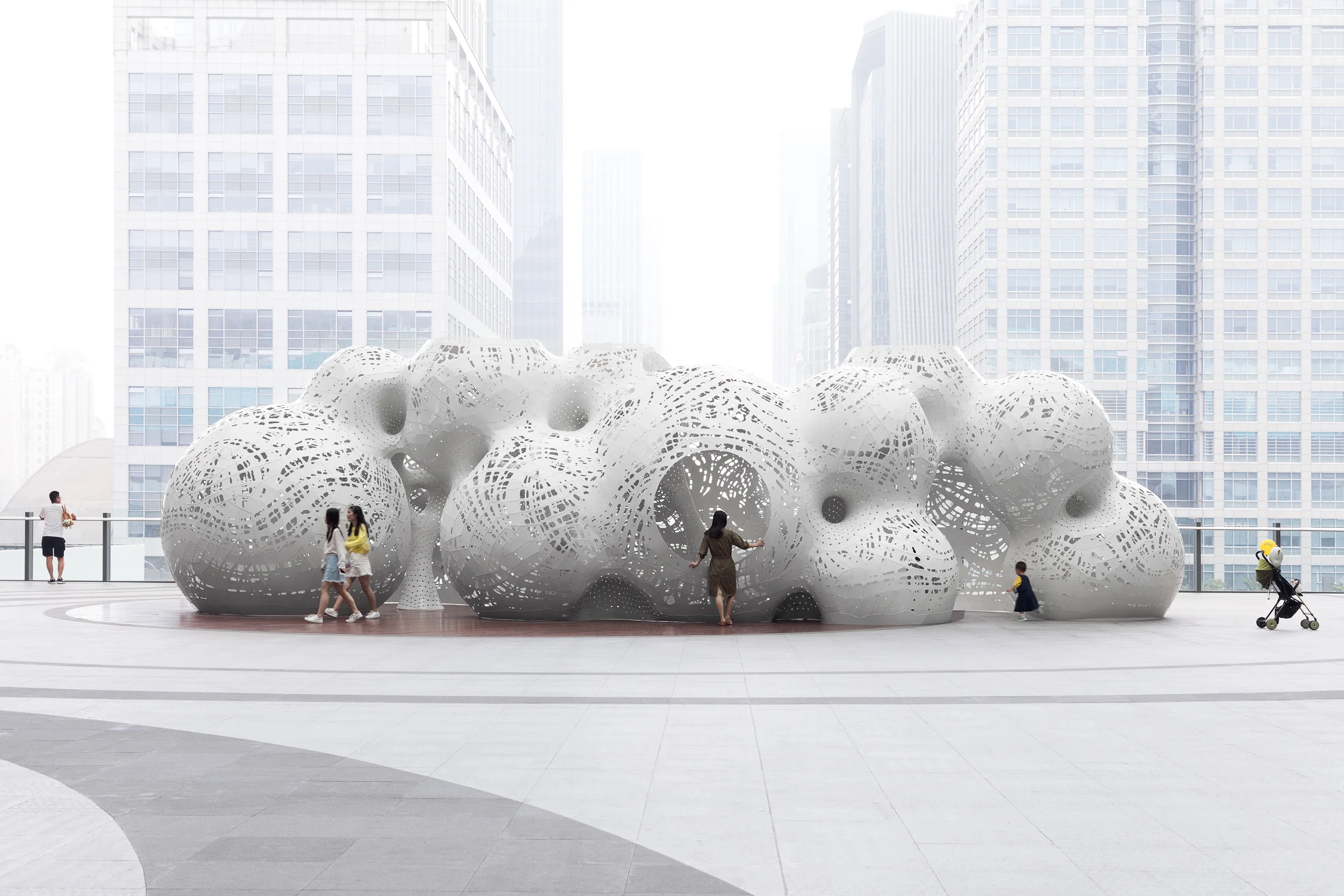

For the event of the Jinji Lake Biennial, MARC FORNES / THEVERYMANY installed a large-scale outdoor pavilion on the elevated plaza of the Suzhou Center. Its undulating enclosure interrupts the usual traffic, as an unexpected, emergent environment. It appears to have bubbled up from the ground, or dropped from the sky. The structure, both massive in scale and delicate in white aluminum, lands lightly on an ultra-thin edge.

Boolean Operator—so named for the function that determines relationships between statements, geometries or forms—makes an impression from a distance. Unlike the surrounding texture of the city, this curious structure radiates an otherworldly quality. It casts a strange shadow. It seems to conceal something behind its porous shell. Like seeing the full moon on a clear night, you can start to identify its surface, its irregular craters, and its possible depths. You are pulled closer into its far-reaching orbit and prepare to enter into its interior atmosphere.

Entering the structure is a revelatory experience. Something between a vessel that’s carefully engineered to “move” you and a destination in itself, Boolean Operator transcends the surrounding environment, even as it remains embedded in it. Typically, we argue for the contextual; here were interested in a point of departure.

In one respect, our journey happens in an instance: you cross the threshold and you are, all of a sudden, somewhere else entirely. The drama of the interior atmosphere makes you feel as if you have instantly descended into some other world, despite the thinness of the enclosure that separates you from the familiar terrain beyond.

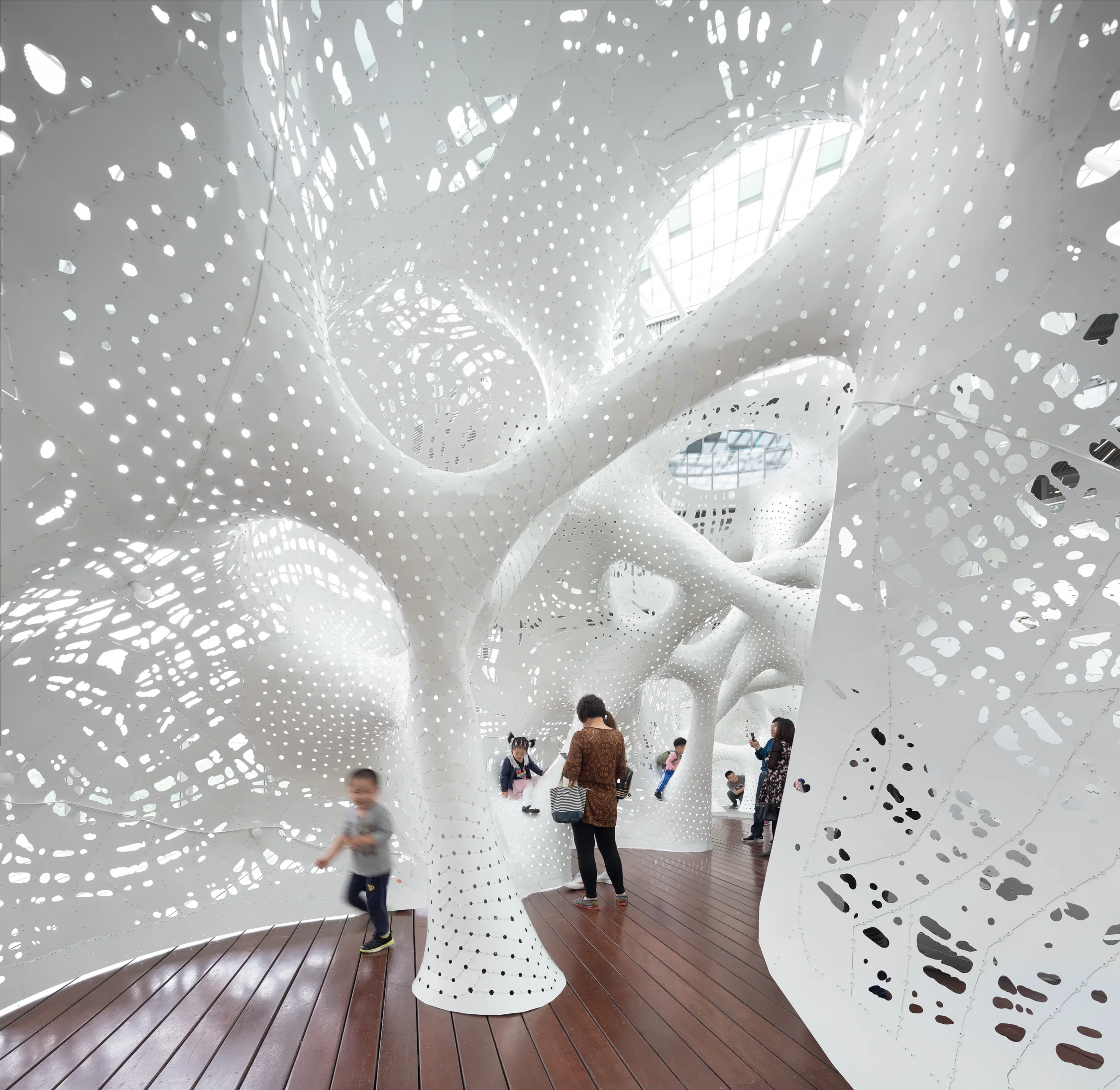

Suffuse in light, the details come into and out of focus. A continuous surface grows from a network of columns that peel open into the enclosing shell. Topologically, there is no simple dichotomy between envelope and supports, but the two are made from a continuous skin that self-supports throughout. The relationship is like an unwrapping: what is inside of the columns eventually becomes the outside of the shell. In aluminum parts as thin as 1mm in places where the curvature is tightest and up to 2mm thick on larger spans, the structure maintains a light impact on the ground.

The intricacy of the skin asserts a density: of limbs, of openings, of parts and their connections. You have to let your eyes adjust to the resolution of the experience. Unfocusing your gaze again, the whole scene overwhelms, strikes awe, compels you to move closer, deeper, and through an edgeless space. The doubly-curved surfaces cast no regular shadows, giving little information to the eye to perceive its scale or depth. The only way to understand the space is to move through it. Your winding path isn’t designed, but implied by a swirl of light, plotted on a map of your own desires.

And so it becomes a irresistible terrain for play. All the instances where columns branch and recombine into the bulbous shell, make for an architecture that opens to climbing, ducking, hurdling, hiding and seeking. Children are the best explorers of this environment, while attending parents wonder how the structure sustains this activity despite being so thin.

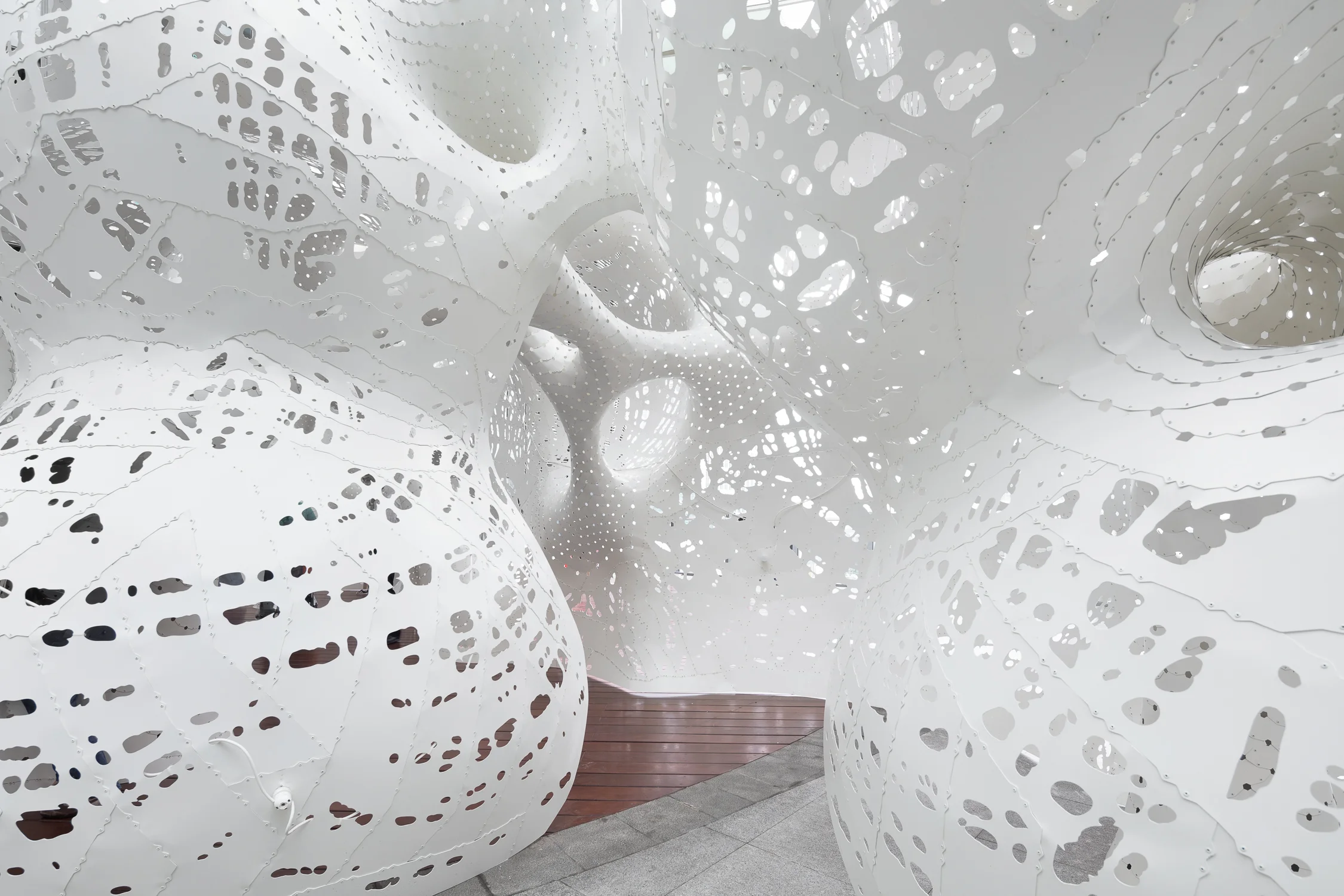

A constellation of openings in the skin are also the result of a kind of exploration. Crawling agents of a computational search protocol find their way across the spherical mesh, leaving a trail of non-linear stripes in one pass and apertures between them in another. The two directions of flow curves result from a structural analysis on the digital 3D geometry. Agents determine the directional fitness as well as the maximum length of stripes along these paths so that they can be accommodated on a conventional sheet of aluminum. In another direction, sometimes aligned with the parts, sometimes snaking across them, agents locate opportunities to eat away at the envelope, leaving the minimum material to sustain the structure, but augmenting the experience through a complex game of shadows. Visitors to the site retrace these paths with their gaze or their hands: even in close range, there are hidden dimensions.

vectors of translation

Like Verne's Nautilus, a ship modeled on an early French submarine, our ultra-thin shell structure is a transporting vessel. The vector of translation from one world to another is highly engineered, and for Verne, ahead of its time. Disguised as a kind of sea creature in steel sheet metal, the Nautilus becomes a conspicuous part of the habitat it navigates.

But there is no mistaking it for a giant squid. The Nautilus, piloted by Captain Nemo in The Mysterious Island and on his Journey to the Center of the Earth, is described in the text as an "enormous cylinder of sheet iron,” (l'énorme cylindre de tôle) that carries its explorers into unknown territories. Captain Nemo elaborates on its form: “its lines are sufficiently long and its streamlines prolonged enough, that displaced water moves aside easily and opposes no obstacle to its progress.”

forward trajectories

The technology described in the Voyages Extraordinaires prefigures the innovations with which we are familiar today: u-boats, satellites, spacecrafts, and television. A century and a half after Verne, THEVERYMANY are dedicated to making real the fantasies otherwise relegated to the digital and we are practiced in fabricating architecture that defies convention.

CREDITS

Design + Build
MARC FORNES  / THEVERYMANY

Client
Qu Art

Photography
NAARO
