LABRYS FRISAE

ART BASEL MIAMI - 2011

ART BASEL MIAMI | "Labrys Frisae" - indoor pavilion | (Miami Dec.01-04.2011)-2013

Design: MARC FORNES & THEVERYMANY™ ©2011

Commissioned by SUSHI SAMBA / GGG | http://www.sushisamba.com/

Many thanks to Shimon Bokovza for all his trust and support!

Location : The Rotunda Space - 3252 NE 1st Avenue, Suite 101 - Miami, FL 33137

Overall size: 28'-10" x 29'-9" x 17'-5"

Holes: 202, 290 Rivets: 101, 145 Text: 12,584 Total Parts: 10,322 Weight: 1642lbs / 744kg 256 Sheets of Aluminum 74 Nodes 6 missing parts that had to be recut - 0.05% missing!

Structural test!

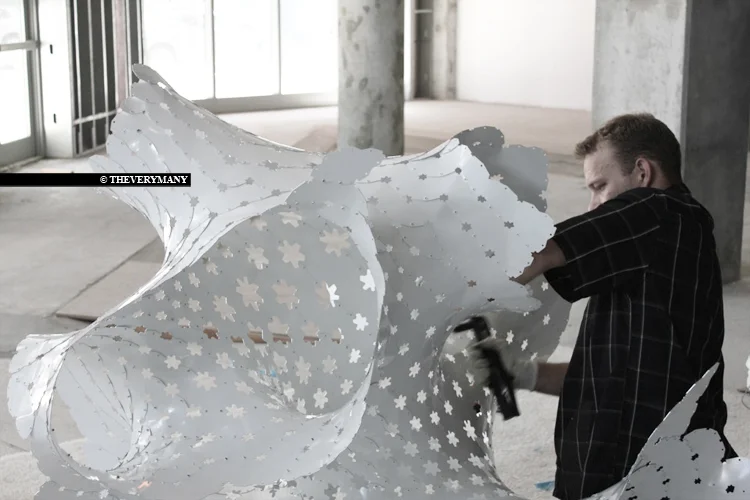

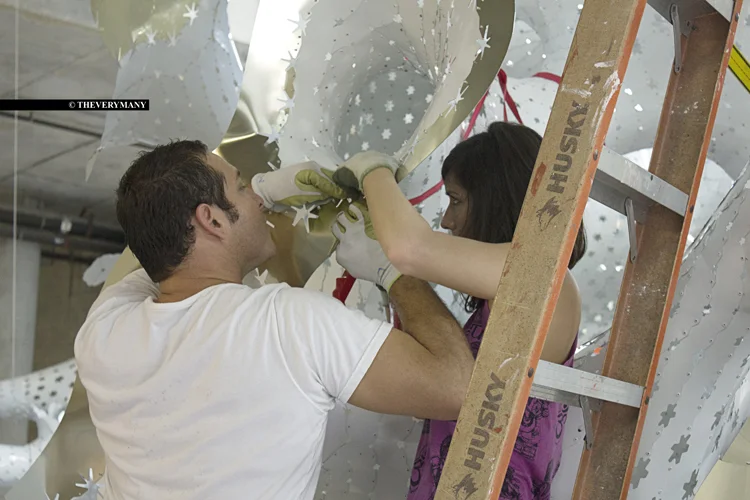

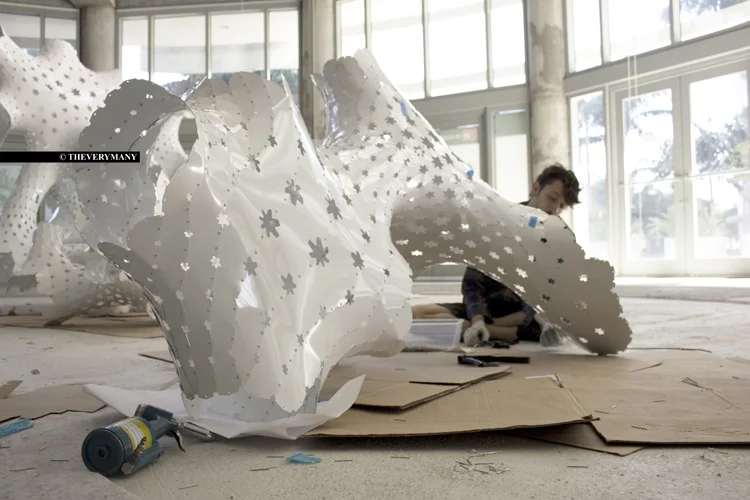

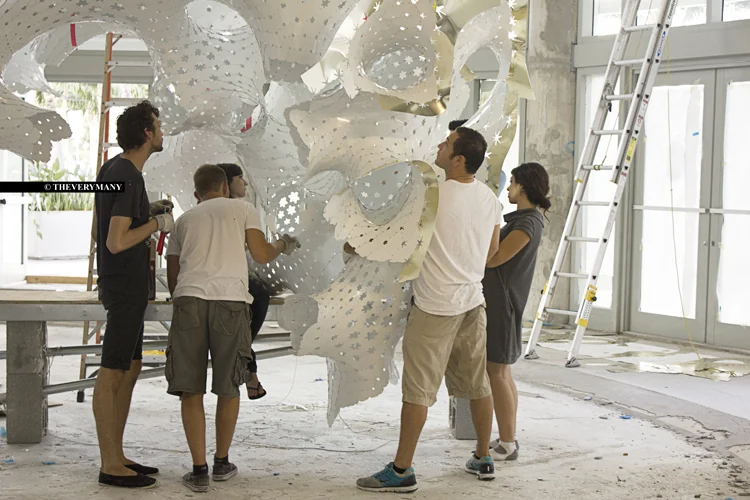

Assembly...

( photos by Pablo Iriarte )


Many thanks to the assembly team for the push! For some usually obscure reasons FedEx didn't deliver the last shipment of parts (why am I only half surprised!) - therefore change of plans and improvisation for the assembly sequence... one has to be a phoenix on such project... anyway first "beam" bridged!

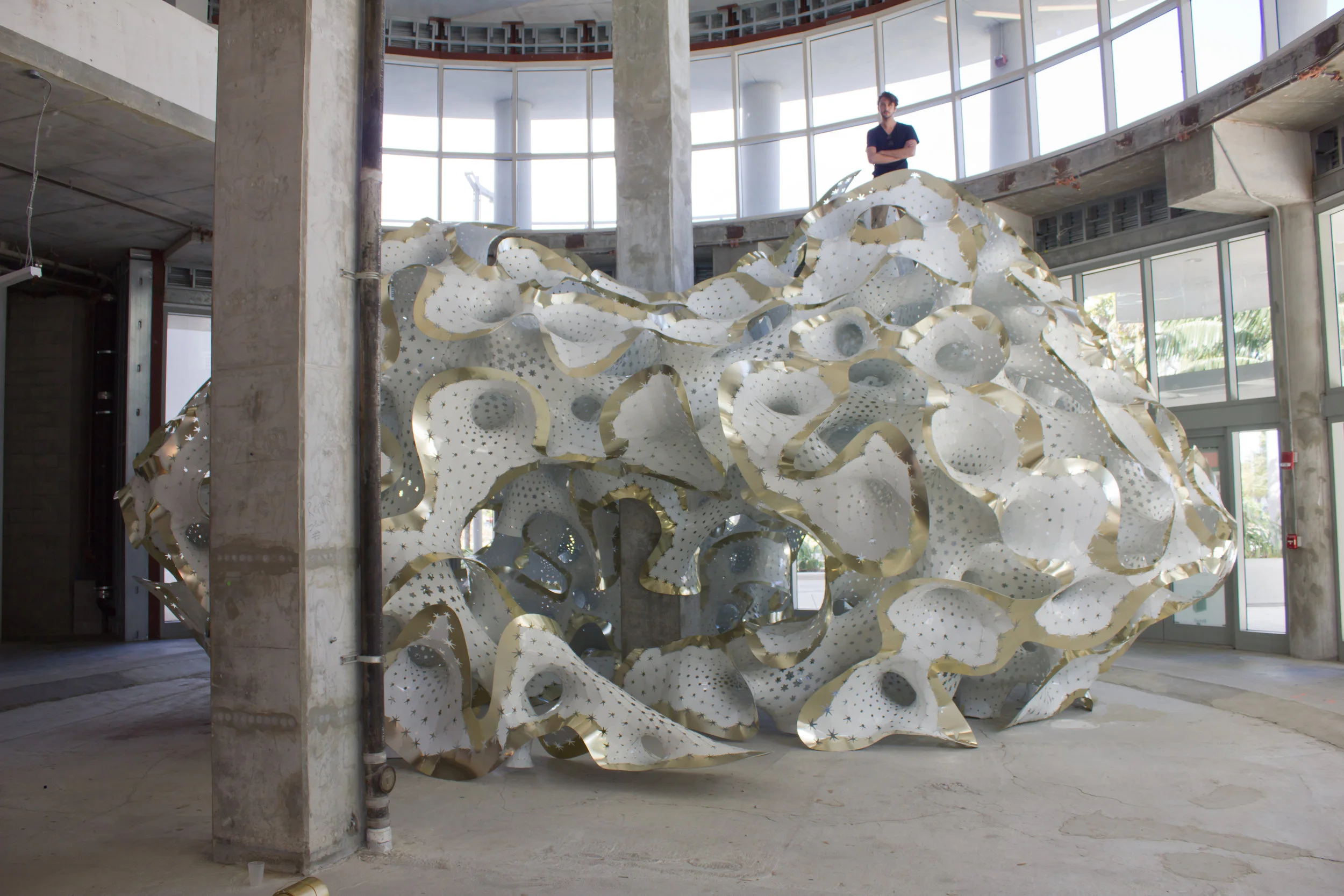

111120 | sneak preview: 17  nodes - first tier standing!...

111119 | 74 nodes completed!...

111117 / overall assembly whille waiting for the rings...

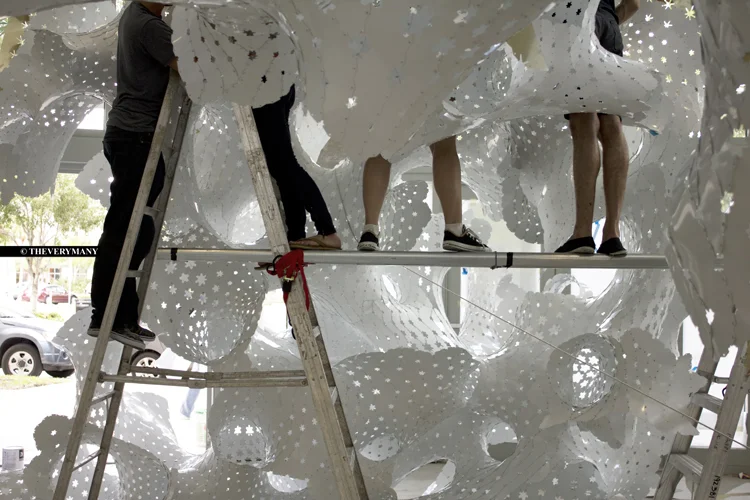

111109 / progress on the overall assembly...


111109 / lighting options in a true Miami fashion...

111108 / one of many visits & help from students studying architecture


111104 / about 50% of the nodes - 3 weeks to go!


111022 / about 15% completed!!


111016


111014
