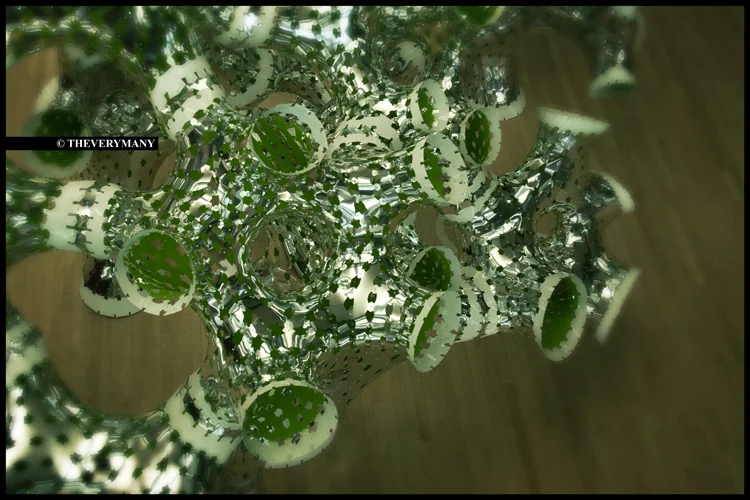

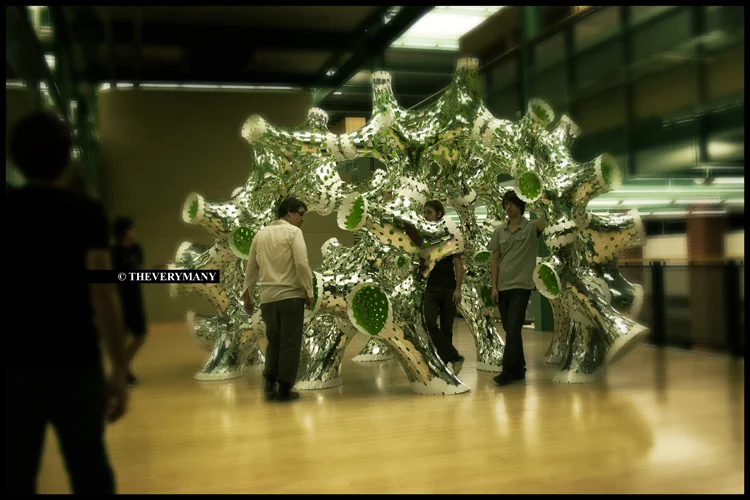

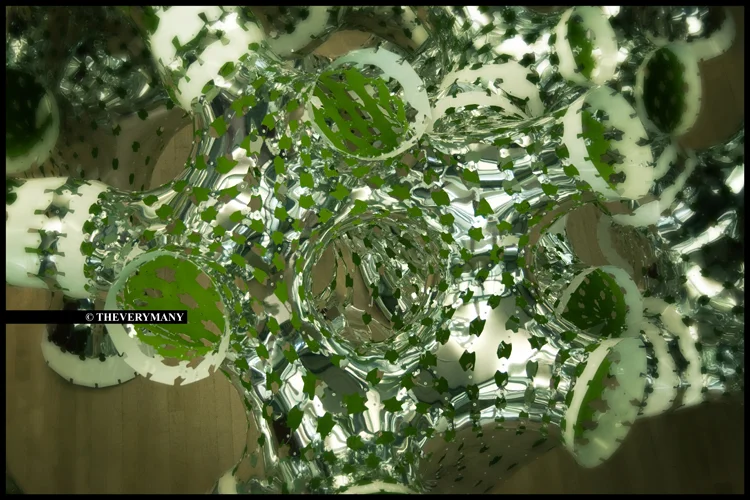

POLYPESQUE

PENN STATE | June 6th 2010


Design: MARC FORNES / THEVERYMANY™ ©2010

Many thanks to David Celento (PSU/DigiFAB) for making it happen! Many thanks to Jamie Heilman (PSU/DigiFAB) for the push on production & assembly!

Many thanks to the entire Penn State SALA DigiFAB Team: Marissa Dwyer, Dave Palmieri, Dylan Salmons, Barry Kew, Patrick Mawhinney, Eric Weiss, Rebecca Henn, Noah Goldberg, Ross Stirton, Phil McGee, Reggie Aviles, Samantha Josaphat, Pete Mauer, Bob Fedorchak


Sum of its part:

#13 NODES: 1336 strips 234 individual parts 20674 holes 2906 text

#116 RINGS: - Rings (Connexion): 112 strips 112 text 1934 holes - End rings: 122 strips 122 text 1231 holes -28 RINGS (interface): 56 strips (later decomposed into: 411 parts) 56 text 947 holes

#Total holes: 24 786 about 12500 rivets
