SITUATION ROOM

STOREFRONT FOR ART & ARCHITECTURE (2014)


photo courtesy Miguel de Guzmán / www.imagensubliminal.com 2014 | SITUATION ROOM | Storefront for Art and Architecture, NYC

Design + computation: MARC FORNES / THEVERYMANYIn collaboration with Jana Winderen (visual/sound artist) Fabrication consultant: bengal.fierro

VIRTUAL TOUR (by John Sanchez):http://explorer360.org/spheres/ny/situation-room.html

At Storefront for Art and Architecture NYC Currently on display: : October 4 – November 21, 2014


Situation Room by MARC FORNES / THEVERYMANY is a light-weight, ultra-thin self-supported shell structure augmented by artist Jana Winderen's engineered sounds. The overall form is an aggregate of twenty spheres of incremental diameters, combined to create an envelope of experiential tension, a sort of sublime dialogue between the comfort of the known and an uneasy interaction with the unknown. The resultant morphology resonates with a series of distributed transducers and lighting sources playing out through streams of porosity derived from structural stress flows across the elements.

The envelope is created out of boolean operations merging the spheres and lending rigidity through the inherent double curvature, while best allowing for storage through nesting of incremental radii. The inverted curvature of smoothed sphere-intersections provide additional reinforcement while blending with a series of internal rhizomatic networks derived from convergent sphere points. The internal networks subdivide and recombine, eventually resolving into columns that carry down-loads to the ground,. The apparent complexity of the internal morphology is a direct result of the dense aggregate of spheres, creating a rich repertoire of spatial conditions exemplified by compression/expansion, hierarchies and branching, knotting, coves...

Stress flows from structural analysis are used for directional fitness by a series of distributed agents crawling its morphology. Their trails are eventually materialized into non-linear aluminum stripes, while gaps within the force flows are translated into aperture.

The spatial experience is augmented through ten-channels of resonant sounds propagated across the structural surface, operating here as a membrane for distributed transducers. The system set-up provides a large scale inhabitable instrument-apparatus of play for both composer and visitor.

Spatial envelope, acoustic-membrane, structural-performance, assembly-parts and distributed lighting are unified and amalgamated through a coat of neon-effect, blurring one's perception of the known.

Installation specifics: Skin area: 168,520 sq.in.; Spheroids: 20; Flairs: 21; Structural Nodes: 26; Columns: 3; Unique parts: 1673; Lights source: 28; Transducers: 10

An installation by MARC FORNES / THEVERYMANY and Jana Winderen Storefront for Art and Architecture NYC October 4 – November 21, 2014 On the occasion of Situation NY and the launch of World Wide Storefront / wwstorefront.org

Sound composition by Jana Winderen Computation/Assembly by MARC FORNES / THEVERYMANY Fabrication by bengal.fierro

Commissioned by Storefront for Art and Architecture With the support of Robert Rauschenberg Foundation

Additional and generous support has been kindly provided by Brooklyn based fabrication consultant bengal.fierro including prototyping, laser cutting the 2000 unique parts and developing the powder coating of the customized neon pink color of the installation.

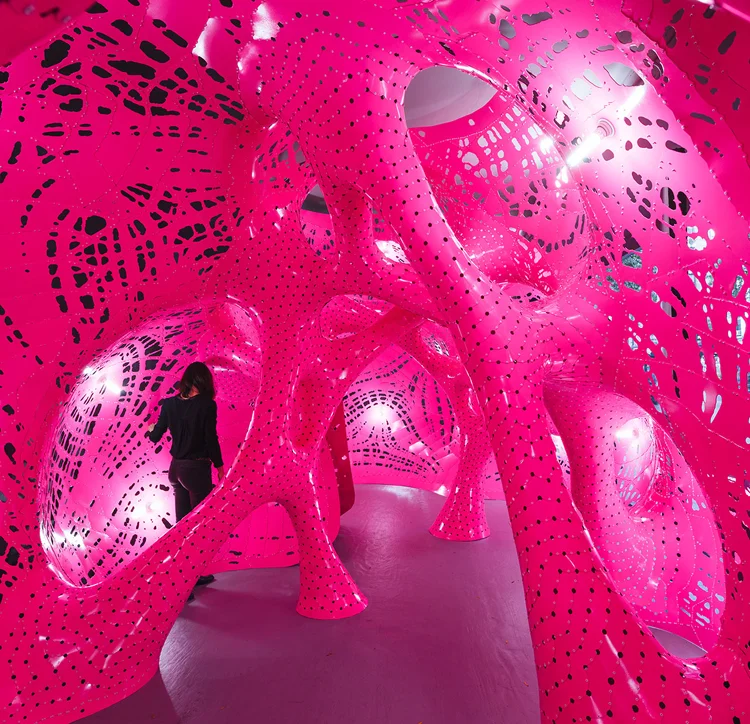

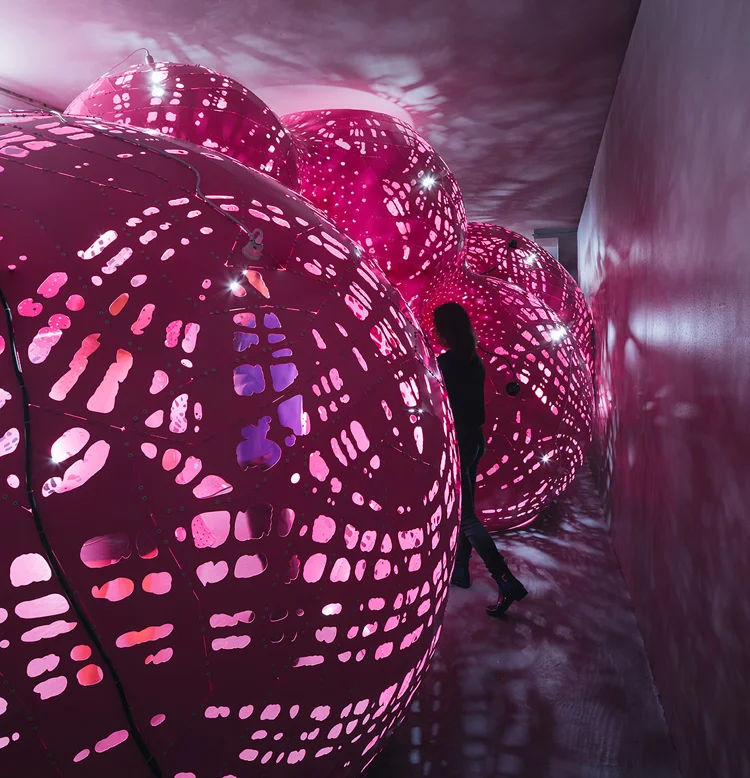

v.141004: photos bellow courtesy of Miguel de Guzmán / www.imagensubliminal.com


v.141004: photos bellow courtesy Jana Winderen

141004_DSC_0126

141004_DSC_0126

141004_DSC_0130

141004_DSC_0130

141004_DSC_0193

141004_DSC_0193

v.141002: quick preview...

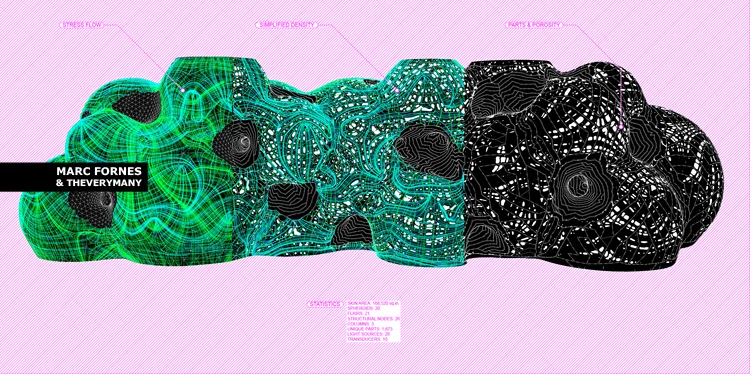

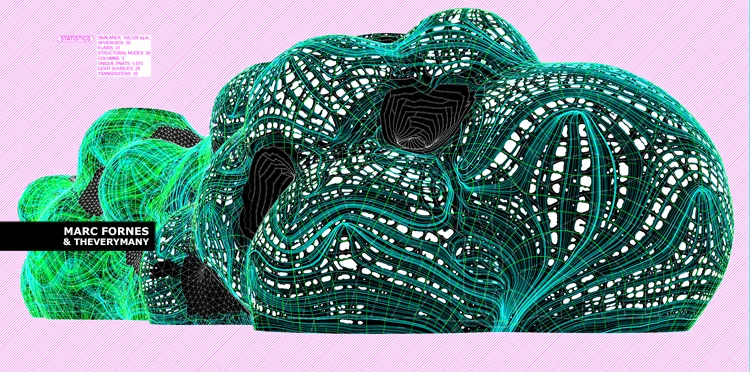

Material system following stress flow on surface... (ie: optimization of ratio weight / structural performance)

v.14.09.17


v.14.09.12

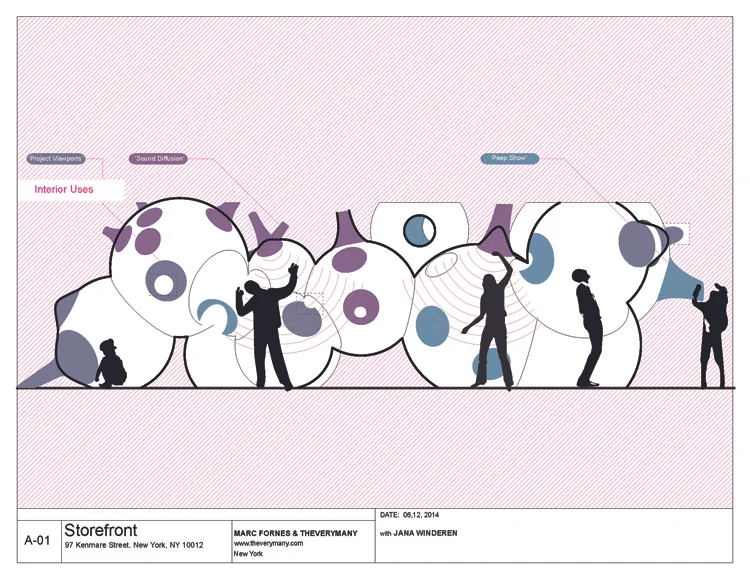

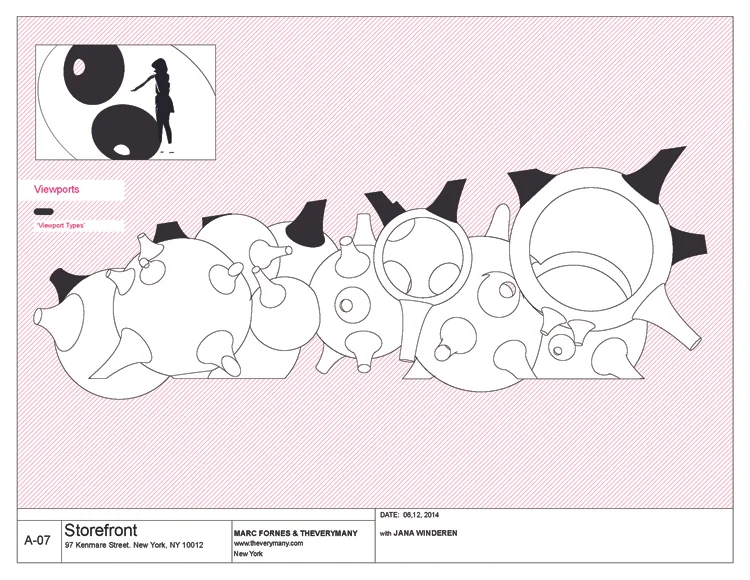

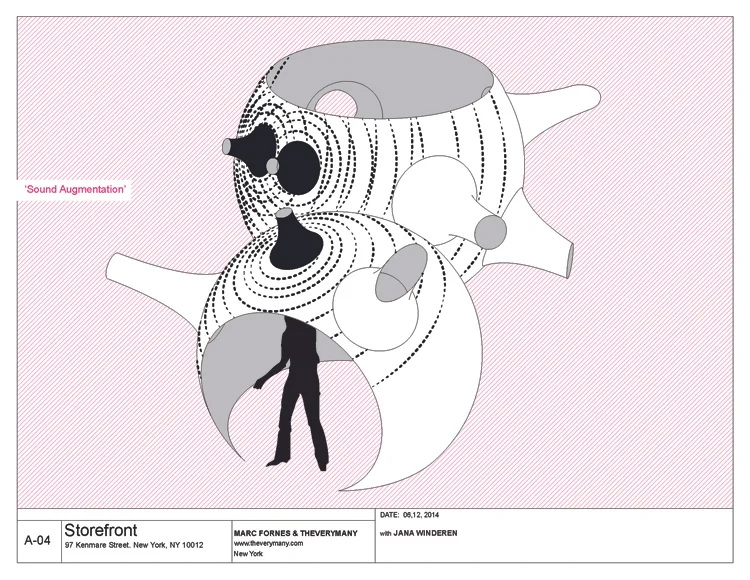

v.140729 (option White) and v.140613 (option White + Magenta)

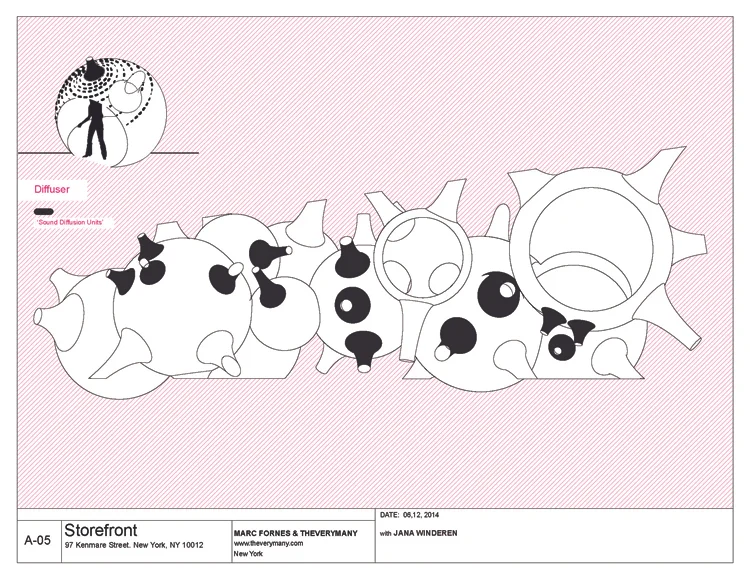

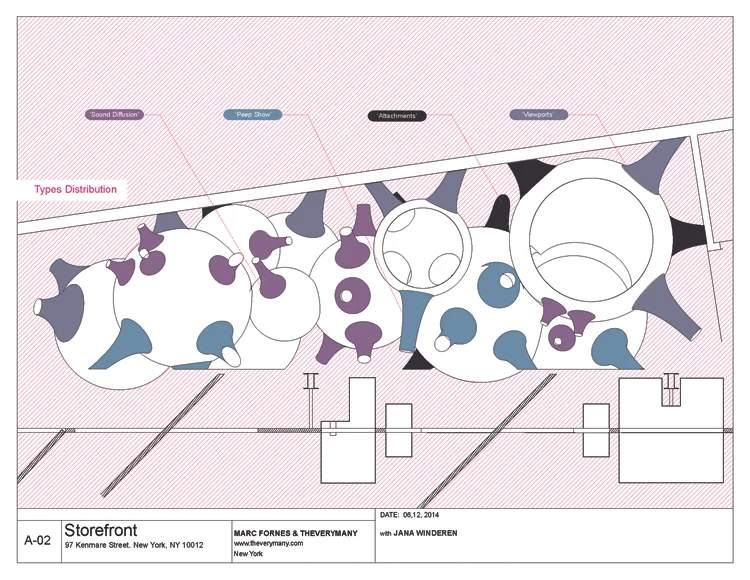

v140613:

v 14.0.613

v 14.06.13

An experimentation on series of parallel agents (encapsulated rules sets) following the surface stress pattern when submitted to dead load & sound emitters location (transducers /vibrations).
